Hp 8470p Fixes!

Hi!

I have an 8470p with Amd 7570m graphics card on latest High Sierra 10.13.2 (17C205).

Fully functional, except:

-my cpu is working on base clock(2.7 Ghz), can't get the turbo boost.(~3.5 Ghz 4core 45w) (wrong cfg, I think)
-no handoff (My BT controller isn't supported I guess, but I can pair with my iPhone.)
Broadcom 20702A3
Vendor ID: 0x0A5C
Product ID:0x21E1

(AR9285 wifi)

-the config.plist file has a little bit of messed, because when I paste the EFI folder to the volume and install the kexts then i restarting i get some error.
-DSDT/SSDT file is generated with "old" PBI-CE. ( But i created SSDT with ssdtPRGen.sh)
-wrong SMBIOS ? -I'm using MacBookPro10,2, but 3740qm was only in MacBookPro10,1.
-Clover version 4289. (I created bootable usb with Unibeast, and installed clover only in UEFI and ESP)

I would like to:
-right way working cfg.(How to do that? - yeah, I know, use clover conf. or Plist editor, but what/how for best)
-I can be installing kexts to /Library/Extensions without any issues and not only read kexts from /Volume/EFI/CLover/Kext/Other or running.
-which kexts are need it, exactly?

I attached some files are you need it, tell me if need more information.
I don't know, can i write in English I didn't find a policy.

Thank You!

Hello anonymous writer,

Thanks for you reply!

I have only two mistakes as I said and the 7570m dgpu is working fine about 95%.
I got similar benchmark value under Cinebench Open gl test like in Windows.(~25fps)
In Geekbench I got half as point like in windows.
So,
My problem is the config file, I need help in this.
Plus, my cpu isn't got the Turbo Boost.
I think, because of the config.plist.( disable something or whatever)

I attached files in first post.

Thank you!

nothing is impossible, I guess
i think so too.

As is said :D, yes I made with ssdtPRGen.sh and I created another one of with "old" Probook Installer.

Edit1: But I don't know which generated ssdt file there is in folder.
Reattach it ?

So,

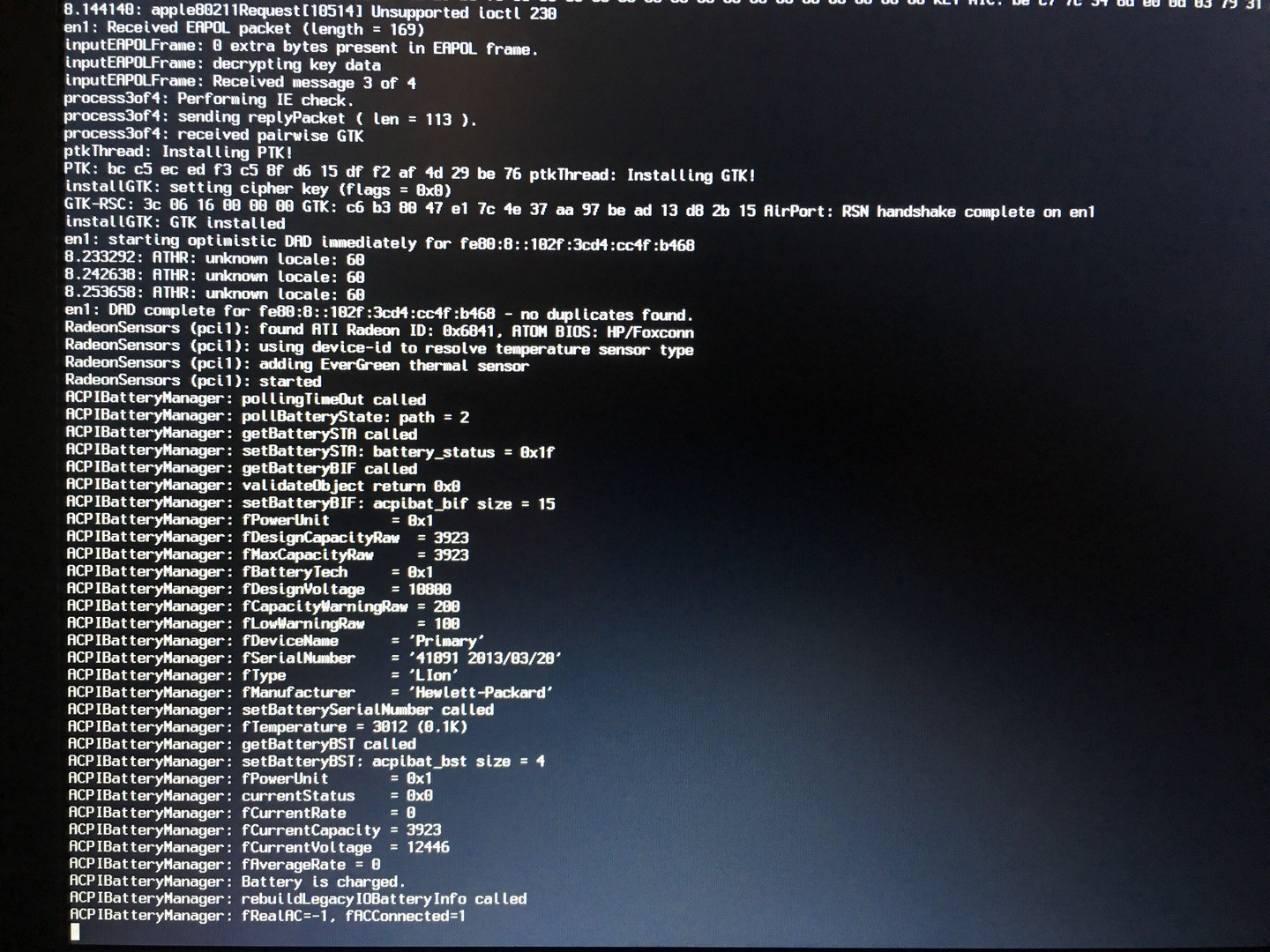

First a I was deleting the "NullCPUPowerManagement.kext" then restart and I got some error. (pics)
Second I added the dsdt.aml to the box (without NCPM.kext), save and restart, same result.
The nullpower... is a desktop support kext, isn't it?

I created ssdtPRGen.sh beta with /ssdtPRGen.sh -c 3 command.

I am totally confused.

both. 60s and start again the error, but I did not wait 10 minutes for it.

well,
dsdt or/and config is wrong ?

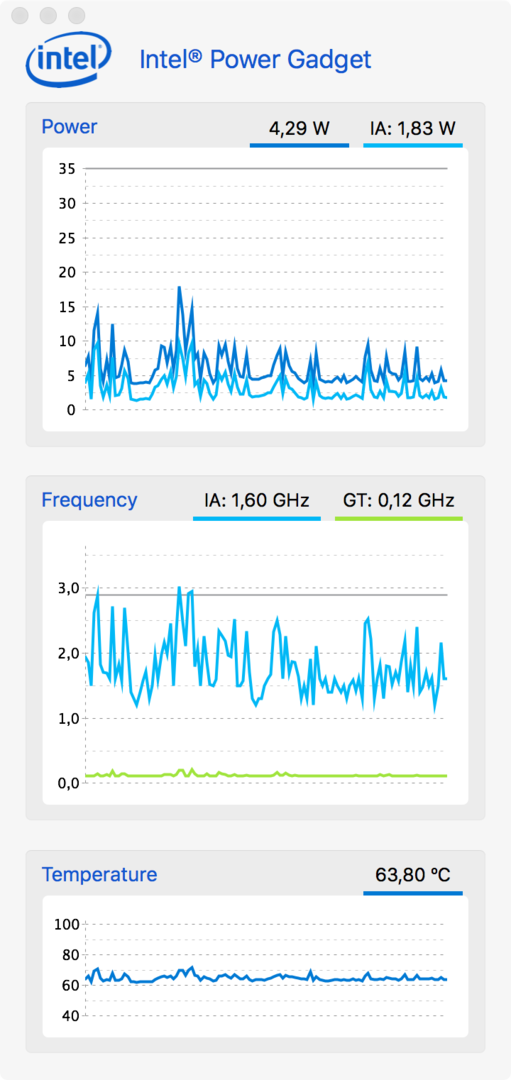

Edit: When I opened this Intel Power tool, the OS is immediately crashed and restarted.
Edit1: I use Hwmonitor.
Edit2: Yep,I confirmed, again crashed.

Post 10. Edit section.

Oh my goodness, it's worked!
Pictures under playing 4k60fps, smooth as hell. ( some frame-drop)

Big Thanks Griven!

Edit:
Anonymus writer:
I have something for you, icc profile with Datacolor Spyder3Elite for 8460p. (not mine)
I recommend it to you: Acpipoller.kext for better control. (Pl:Fan display in Hwmonitor)

I see and agree with you.
I found this in the forum:

HP EliteBook 8470P High Sierra 10.13.1 Installation

Exactly same device and Bt.modul, same IDs, but I don't know what Wifi card he uses.

I think the kexts issues was because of the nullpowermanagement.kext.
I'll try it later.

Kexts:
I was looking for what several times, which kexts do I need it.
Is it right, which is in the folder.? (attached)
(Except, FakePCIID's kexts and voodoosdhc and voodoohda ('cause AppleHDA )
Which one should be in /Library/Extensions and which in /Volume/Efi?

Thank you!

I installed the AppleALC.kext successfully, but now there isn't hdmi audio.(VoodooHDA there was.)
I forgot another issue. When I first booted the OS drive my screen wanted to display 30 bits and the color flickered.
I resolved the problem with ResXtreme app and changed to 24-bit, but when I was connecting to the TV, the problem came again.
The Card Reader doesn't work, first it worked completely.

I attached the Other folder and pics.
Do i need to install something to / Library / Extensions.? -or it's okay.

Btw: did you try the ICC profile?
