ozmosis und shiki

veranyon · 15. Februar 2018

Left to clover.
As I understood, the bindle HD2500,HD4000 (capri) with amd one is not long for this world, and z77-ds3h have hd4000 chip. z77-ds3h for nvidia only, as I had undersand.
I can add id-platform-od (there is a 0x01620007 one), change 47465830 one to 49475055 (GFX0 to IGPU) and PEGP to GFX0 values (for my discrete one), but I can't have hardware accel for igpu.

Code

/Users/iron/Downloads/001/VDADecoderChecker\ 2 ; exit;
AVDCreateGPUAccelerator: Error loading GPU renderer
VDADecoderCreate failed. err: -12473 <<<<<<<<<<<
An error was returned by the decoder layer. This may happen for example because of bitstream/data errors during a decode operation. This error may also be returned from VDADecoderCreate when hardware decoder resources are available on the system but currently in use by another process.
VDADecoderCreate failed. err: -12473
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

fcpx 10.4 will being to crash my system.

kuckkuck · 15. Februar 2018

Are you using Shiki at the moment? Please send me a picture from the System Report --> Graphics.

veranyon · 15. Februar 2018

1. No I'm not.
2.
AMD Radeon HD 7970X/8970/R9 280X:
Chipset Model: AMD Radeon HD 7970X/8970/R9 280X
Type: GPU
Bus: PCIe
PCIe Lane Width: x16
VRAM (Total): 3072 MB
Vendor: ATI (0x1002)
Device ID: 0x6798
Revision ID: 0x0000
EFI Driver Version: 01.00.3180
Metal: Supported
Displays:
DELL 2408WFP:
Resolution: 1920 x 1200 @ 60 Hz
Pixel Depth: 30-Bit Color (ARGB2101010)
Display Serial Number: G286H98K0N6S
Main Display: Yes
Mirror: Off
Online: Yes
Rotation: Supported
Automatically Adjust Brightness: No

kuckkuck · 15. Februar 2018

An there's nothing about the HD 4000 in the SystemReport?

Are you using this VDADecoderChecker?

You can also try using 0x01620006.

Also you can try using shiki with the bootarg: shikigva=60

veranyon · 15. Februar 2018

1. and 3. Yes. I'm use 0x01620007. "fake connector" or one that haven't connectors.
2. Get that variant also. Got the same rusult (as in that post ozmosis und shiki).
May be better will I attach bootlog.txt and config.plist? I had add it in that post. https://drive.google.com/file/…YRrZkfQX/view?usp=sharing
4. will test it. Thank you.

######UPDATE######

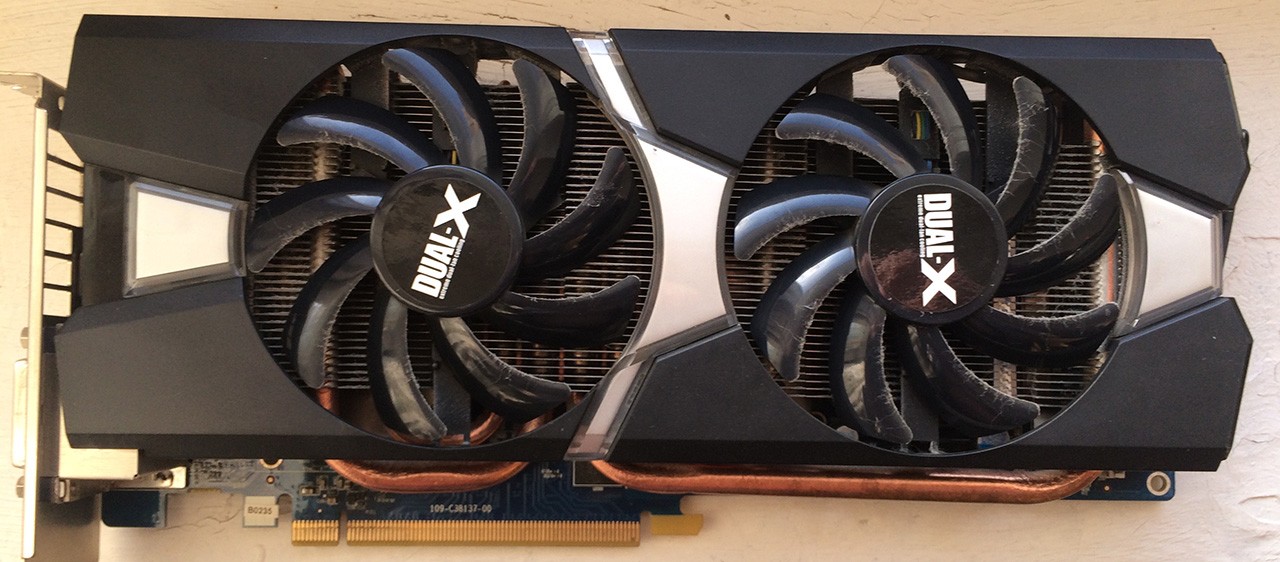

My video card is (more certainly name): R9 280X 3G GDDR5 PCI-E DVI-I/DVI-D/HDMI/DP DUAL-X OC VERSION (UEFI)

kuckkuck · 15. Februar 2018

Is it a sapphire card?

Waiting for your test results...

veranyon · 16. Februar 2018

I bought it as msi. Yes, it's a saphore card.
###
<string>-v -lilubeta -igfxbeta -alcbeta -shikibeta shikigva=60</string>
#
boot.log

Spoiler anzeigen

Code

...
4:473 0:000 Framebuffer @0xE0000000 MMIO @0xF7B00000 I/O Port @0x0000E000 ROM Addr @0xF7B40000
4:473 0:000 PCI region 1 = 0x00000000, region3 = 0x00000000, region5 = 0x00000000
4:473 0:000 BIOS_0_SCRATCH=0x00000050, 1=0xC0C821A5, 2=0x00000000, 3=0x00000000, 4=0x00000000, 5=0x00000000, 6=0x00000000
4:474 0:000 RADEON_CRTC2_GEN_CNTL == 0x00000000
4:474 0:000 card posted because CONFIG_MEMSIZE=0xC00
4:474 0:000 ATI card POSTed,
4:474 0:000 Set VRAM for Tahiti =3072Mb
4:474 0:000 ATI: get_vram_size returned 0xC0000000
4:474 0:000 ATI Radeon EVERGREEN+ family
4:474 0:000 Framebuffer set to device's default: Futomaki
4:474 0:000 N ports defaults to 5
4:474 0:000 (AtiPorts) Nr of ports set to: 5
4:474 0:000 ATI Tahiti AMD Radeon HD 7970X/8970/R9 280X 3072MB (Futomaki) [1002:6798] (subsys [174B:3001]):: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)
4:474 0:000 Intel HD Graphics 4000 [8086:0162] :: PciRoot(0x0)\Pci(0x2,0x0)
4:474 0:000 Found Wide Ultra XGA Display - 16:10 :: Width=1920 Height=1200
4:474 0:000 Beginning DualLink auto-detection
4:474 0:000 High Resolution Display
4:474 0:000 AAPL00,DualLink = 1
4:474 0:000 FakeID Intel GFX: not set
4:474 0:000 ig-platform-id = 0x01620007
4:474 0:000 Beginning Intel GFX auto-detection with ACPI injection
4:474 0:000 Found FakeID Intel GFX = 0x01628086
4:474 0:000 Intel GFX revision = 0x9
4:474 0:000 setting specified layout-id=99 (0x63)
4:474 0:000 stringlength = 5004
4:474 0:000 CurrentMode: Width=1920 Height=1200
..

Alles anzeigen

wdadecoder (your link hackintosh-forum.de/wffaq/inde…efaults-plist-und-SMBios/)

Code

/Users/iron/Downloads/VDADecoderChecker ; exit;
GVA info: Successfully connected to the Intel plugin, offline Gen7
Segmentation fault: 11
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

vdadecoder (download it for sierra)

Code

iMac:~ iron$ /Users/iron/Downloads/001/VDADecoderChecker\ 2 ; exit;
GVA info: Successfully connected to the Intel plugin, offline Gen7
AVDCreateGPUAccelerator: Error loading GPU renderer
VDADecoderCreate failed. err: -12473
An error was returned by the decoder layer. This may happen for example because of bitstream/data errors during a decode operation. This error may also be returned from VDADecoderCreate when hardware decoder resources are available on the system but currently in use by another process.
VDADecoderCreate failed. err: -12473
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

Alles anzeigen

kuckkuck · 16. Februar 2018

This looks fine to me, VDADecoderchecker reports Decoding as working.

Please download MacX VideoConverter and click on the little info button next to the Intel Encoder and report if Encoding is reported as supported.

veranyon · 16. Februar 2018

Hardware encoding supported: no
(Just I can't write short texts here)

2. A computer can goes to sleep and wake up normally. As through a igpu works, but igpu hw acceleration doesn't work (capri+amd).

kuckkuck · 16. Februar 2018

Please add two more Renames to your ACPI config.plist section and report again with the output of MacX:

Comment: change HECI to IMEI
Find: 48454349
Replace: 494D4549

Comment: change MEI to IMEI
Find: 4D45495F
Replace: 494D4549

veranyon · 16. Februar 2018

Code

iMac:~ iron$ /Users/iron/Downloads/001/VDADecoderChecker\ 2 ; exit;
GVA info: Successfully connected to the Intel plugin, offline Gen7
AVDCreateGPUAccelerator: Error loading GPU renderer
VDADecoderCreate failed. err: -12473
An error was returned by the decoder layer. This may happen for example because of bitstream/data errors during a decode operation. This error may also be returned from VDADecoderCreate when hardware decoder resources are available on the system but currently in use by another process.
VDADecoderCreate failed. err: -12473
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

Alles anzeigen

Code

AMD Radeon HD 7970X/8970/R9 280X:
Chipset Model: AMD Radeon HD 7970X/8970/R9 280X
Type: GPU
Bus: PCIe
PCIe Lane Width: x16
VRAM (Total): 3072 MB
Vendor: ATI (0x1002)
Device ID: 0x6798
Revision ID: 0x0000
EFI Driver Version: WEFR-115-2018-02-12
Metal: Supported

Alles anzeigen

nothing

boot.log

Code

..
18:745 0:000 0. [change GFX0 to IGPU]: pattern 47465830, bin not found / already patched!
18:745 0:000 1. [change PEGP to GFX0]: pattern 50454750, bin not found / already patched!
18:745 0:000 2. [change HECI to IMEI]: pattern 48454349, bin not found / already patched!
18:745 0:000 3. [change MEI to IMEI]: pattern 4D45495F, bin not found / already patched!
..

boot.log.txt.zip has been attached.

kuckkuck · 16. Februar 2018

Which Version of VDADecoderCheck are you using?

I think you are using a custom DSDT. Please attach it.

veranyon · 16. Februar 2018

1. From src (https://github.com/cylonbrain/VDADecoderCheck).
had built and run with xcode.
2. I just will put the link of my clover. https://drive.google.com/file/…8EeRayGF/view?usp=sharing
There isn't custom dsdt one, as file. config.plist only.

kuckkuck · 17. Februar 2018

Please use the Version of VDADecoderChecker that I linked above and tell me if decoding works.

Also, attach an IOReg Dump as zip.

veranyon · 17. Februar 2018

The Version oft VDADecoderChecker that you linkes above in that thread.

Code

iMac:~ iron$ /Users/iron/Downloads/VDADecoderChecker ; exit;
GVA info: Successfully connected to the Intel plugin, offline Gen7
Segmentation fault: 11
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

That version is continuing to fall, as and here.

kuckkuck · 17. Februar 2018

Zitat von veranyon

Left to clover.

Did you do a fresh install? Do you still have FCPX issues?

I'm kinda confused right now because this doesn't really behave normally. Do you know he Shiki Wiki? Have you tried the suggestions?

veranyon · 17. Februar 2018

1. Yes. I had install OS from scratch.
2. For all, I'm not single person, who have that problems with fcpx 10.4. People, who have z77-ds3h&amd radeon chips. on Russian https://www.applelife.ru/threa…17923/page-91#post-716117
"у меня х сиерра с этим катом тоже не подружилась, на обычной отлично":
"I have an identical problem with Sierra & fcpx 10.4 app. With 10.3.4 all're ok".
There is an answer at my questions there.
HD2500,HD4000 (capri) chips don't be friends with radeon ones. it's working without igfx hardware acceleration only. Or I'll must to buy nvidia card, or bought other motherboard for that ati card.
fcpx 10.4 wants use opencl for rendering (ati/amd) and decoding (internal graphic chip only!!!!!!!). Not over cpu, and only!!!! over internal graph card))) fcpx&apple kill all configurations that isn't nailed downю. maybe there is a chance to masquerade as apple computer that can't have internal graphics, or haven't second graphic card?

Do you know he Shiki Wiki? Have you tried the suggestions?
"Officially" <HD2500,HD4000 (capri) chips don't be friends with radion ones>, and I were searching the method, how to circumvent that "apple requirements".

https://github.com/vit9696/Shi…/Shiki/kern_start.cpp#L18
shikigva=4 doesn't help.

kuckkuck · 17. Februar 2018

Zitat von veranyon

Or I'll must to buy nvidia card,

iMac 13,2 is using a Nvidia GPU so maybe you could try to use a SMBios that is using an iGPU and an AMD GPU. Don't know whether that could help, though.

Zitat von veranyon

fcpx&apple kill all configurations that isn't nailed downю.

Regarding a lot of things, they do but increasingly there are workarounds as the community gets bigger and better. But I am not aware of any workarounds regarding your specific issue and unfortunately I don't have the time to do more research...

Zitat von veranyon

maybe there is a chance to masquerade as apple computer that can't have internal graphics, or haven't second graphic card?

It is possible to use FCPX 10.4 without an iGPU activated or installed. I see no reason why your PC would crash when you're trying to start FCPX using a dedicated GPU only. But as well as trying a SMBios with an iGPU and an AMD GPU, you could try to use one with only a dedicated GPU, like the MacPro 6.1. The App "MacTracker" is your friend here

veranyon · 17. Februar 2018

shikigva=12 key had help

Code

iMac:~ iron$ /Users/iron/Downloads/VDADecoderChecker ; exit;
GVA info: Successfully connected to the Intel plugin, offline Gen7
Hardware acceleration is fully supported
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.

https://www.applelife.ru/threa…17923/page-99#post-717391

kuckkuck · 17. Februar 2018

Wow, that is awesome!

I wasn't expecting 12 to work...
From the changelog:
"Added temporary process whitelist for 10.13 SKL/KBL & NVIDIA (shikigva=12)"
So I don't really get why 12 should help at the first glance...

Anyway, thank you for reporting, I'm gonna remember that this may be a good fix for Capri + AMD
