Asus B550 Bootloop

    Hallo!


    Ich benötige wieder mal eure Hilfe.


    Ich komme mit meiner OC EFI immer in einen Bootloop wenn ich die Installation auswähle.


    OC ist 0.8.6


    Alle Texte usw. sind auf den neusten Stand.


    Ich konnte leider nicht den ganzen EFI Ordner hochladen?!?


    Danke schon mal für eure Hilfe!

    Dateien

    • config.plist

      (40,89 kB, 104 Mal heruntergeladen, zuletzt: )

    hi Paul1983 first serious problem is here

    you must personalise for your 8 cores CPU first 3 patches you findd in Kernel patches

    My PCs

    config.plist.zip

    if you want to use it backup yours

    I have modified first 3 patches for your CPU and disabled some kext

    My PCs

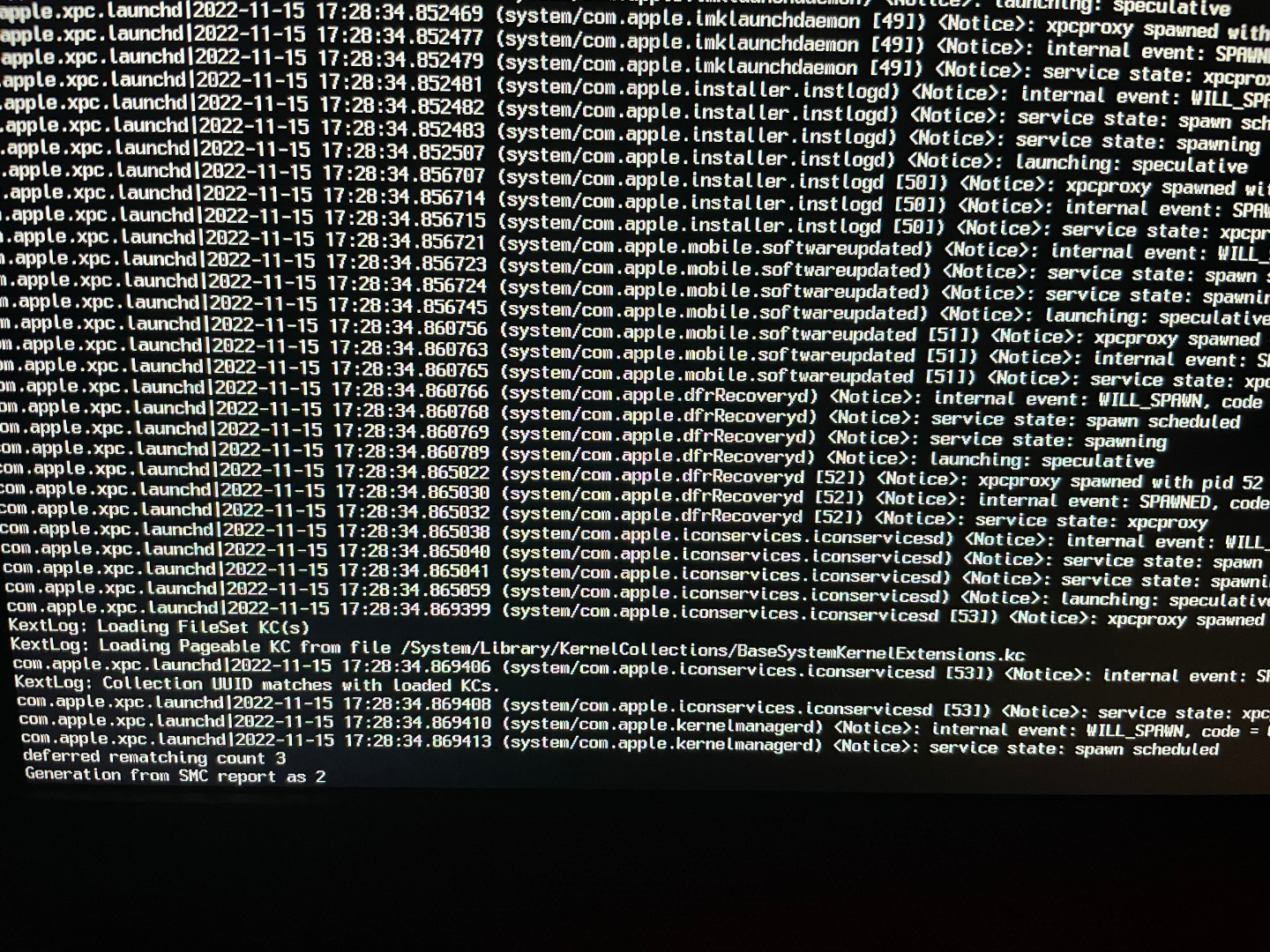

    Thanks, but now I get stuck in a different place every time I start it or it restarts again. I have tried it on different USB places and so on without success.

    Paul1983

    which OS are you installing?

    have you set properly your motherboard Bios?

    I have checked your Kernel Patch section and now is good for your 5800X3D


    Your GPU instead must be spoofed to work (but it is another problem)


    I would check in bios if you have:

    4G ON

    UEFI ON

    CSM OFF


    to start

    My PCs

    I see in config a kext for USB mapping

    is it properly done for your System?

    Have you updated all your kext?

    then if you are installing Monterey or greater OSX you miss a kext:

    AppleMCEReporterDisabler.kext

    AppleMCEReporterDisabler.kext.zip

    with this kext you should pass that Hang

    My PCs

    Okay, thanks, I'll try it tomorrow!


    Thanks for your help!!!!!


    I have now completed the installation but now the PC restarts after a short time after the image has turned gray.

    Einmal editiert, zuletzt von Paul1983 ()

    Paul1983 try to disconnect ethernet cable and see if it is the same

    you should have an intel i225 ethernet (and it could not be supported well)


    You are also using an ethernet kext for a Realtek board

    My PCs

    You are the best!


    One question I still have what you meant because of the GPU in post #6?

    Zitat von Paul1983

    You are the best!


    One question I still have what you meant because of the GPU in post #6?

    Do you have full acceleration with it?

    if not you have to spoof , and here I can help but better some user more skilled than me in this task! ;)

    My PCs

    Okay I also need your help with spoofen!


    I just do not know where the error lies?

    Dateien

    • config.plist

      (40,78 kB, 97 Mal heruntergeladen, zuletzt: )

    • SSDT-BRG0.aml

      (124 Byte, 81 Mal heruntergeladen, zuletzt: )

    you have to find your GPU path in ioreg

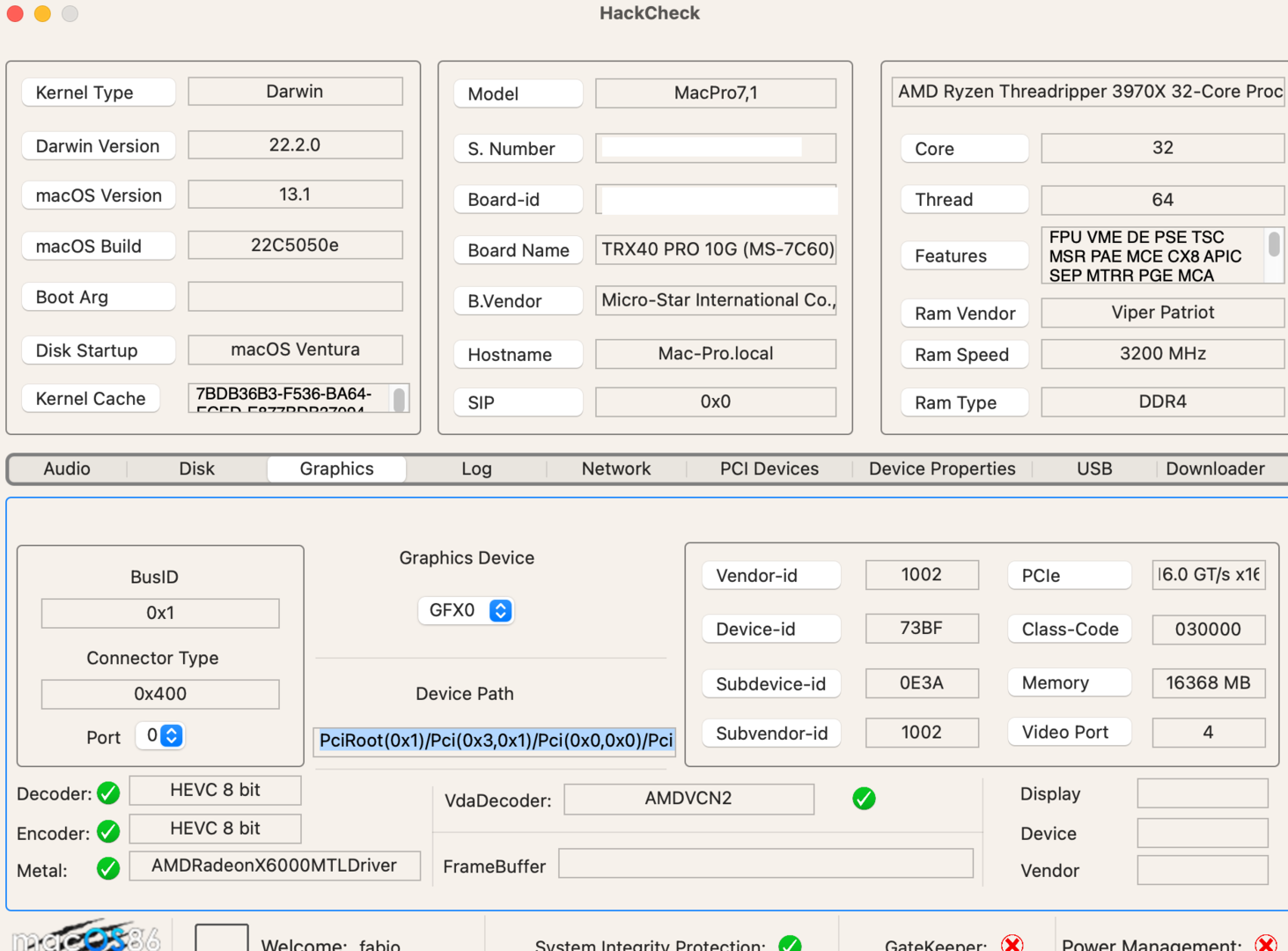

    you can use attached app:


    Edit:

    post path an IOREG


    Edit 2

    Here seems to be an error

    Code
    1. DefinitionBlock ("", "SSDT", 2, "ACDT", "BRG0", 0x00000000)
    2. {
    3. External (_SB_.PCI0.GPP8.X161.SWD_.VGA_, DeviceObj)
    5. Scope (\_SB.PCI0.GPP8.X161.SWD.VGA)

    Dateien

    • HackCheck 2.zip

      (3,48 MB, 63 Mal heruntergeladen, zuletzt: )
    My PCs

    Here please.


    IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/GPP8@3,1/IOPP/X161@0/IOPP/pci-bridge@0/IOPP/display@0


    The HackCheck Zip is broken

    a full ioreg and a ACPI path would be better


    but if you like try it with your device path and spoof in Device properties


    EDIT:

    from terminal:

    Code
    1. fabio@Mac-Pro ~ % xattr -c /Users/fabio/Downloads/HackCheck\ 2.app
    2. fabio@Mac-Pro ~ % chmod +x /Users/fabio/Downloads/HackCheck\ 2.app

    Dateien

    My PCs

    Ich hänge mich auch mal mit rein,

    Warum sind die Kexte so durcheinander geladen??

    Gibt es da nicht eigentlich eine feste Reihenfolge?

    Wo ist dein LAN Kext?

    Windows: AMD 3900X | GIGABYTE AORUS X570 Master | 16 GB GSkill Trident Z DDR4-3600 CL18 | MSI RX 6700 XT Gaming X | Auzentech X-Fi HT HD | WD SN750 | Corsair RM750i

    MAC OS: AMD 2600 | GIGABYTE AORUS B450 i Pro | MSI RX 480 Gaming X | 16 GB AORUS DDR4-3200 CL16 | 500 GB M.2 SSD | Enermax Platimax D.F | MacOS X 11 + OC

    Zitat von Gordon-1979

    Wo ist dein LAN Kext?

    this could be problematic for i225

    I see also some weird option , but for now we have to see if gpu is loaded fine ( I assume system was booting fine with only no GPU acceleration)

    My PCs

    fabiosun


    In der config.plist von denn Paul1983 ist in denn boot-args agdpmod=pikera noch drin ? WEG ist deaktiviert (WhateverGreen.kext) ? https://www.hackintosh-forum.d…ment/201307-config-plist/

    Zitat von OSX-Einsteiger

    fabiosun


    In der config.plist von denn Paul1983 ist in denn boot-args agdpmod=pikera noch drin ? WEG ist deaktiviert (WhateverGreen.kext) ? https://www.hackintosh-forum.d…ment/201307-config-plist/

    yep if WEG is disabled that boot arg is not useful ( but it is safe to leave it does nothing)

    My PCs
